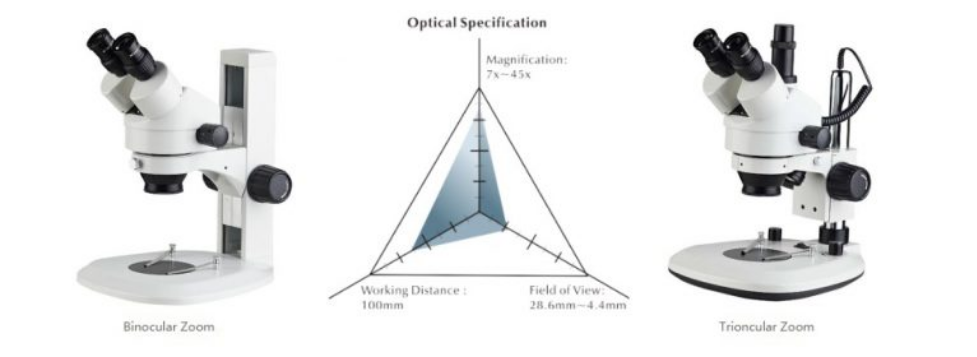

MZS0745 series zoom stereo microscopes have two types, MZS0745 (binocular) and MZS0745T (trinocular). It is characterized by unique optical design, large depth and width of visual fields, long working distance. It has many optional stands and attachments. It can be applied in modern biology research, semiconductor and the other science and technology industry field.
Instrument Features :
Main data :
- Total magnification 7X~45X(standard outfits), extend total magnification270X
- Zoom objective magnification 0.7X~4.5X, working distance 118mm
With high eye point and wide field eyepiece SWH10X( 23mm )
Binocular/Trinocular eye tubes inclined 45°and main body can be rotated 360° - The range of adjusting the diopter is ±6°
- Interpupillary distance adjustment range 52mm ~ 76mm
- The range of adjusting the focus is 100mm (round post is 50mm ), the diameter of the center working stage is 95mm
- The measurement to match between the support and the main body is 76mm
- The distance between from the post center to the main body center is 140mm
- The size of the round post is 25mm
- Illuminatorsthe low illuminator is the transmitted illumination of the fluorescents lamp (5W),the up illuminator is the reflected illumination of the halogen lamp(6V 、10W)
- MZS0745 Series Zoom Stereo Microscopes
Technical Specifications
Technical data :
| Objective | Main body | Objective | ||||
| Eyepiece | 0.5X | 0.7X | 1X | 2X | ||
| 0.7~4.5 | 0.35~2.25 | 0.49~3.15 | 1.05~6.75 | 1.4~9 | ||
| 5X | Total magnification | 3.5~22.5 | 1.75~11.3 | 2.5~15.8 | 5.3~33.8 | 7~45 |
| Diameter of visual field | 32.8~5.1 | 65.7~10.2 | 46.9~7.3 | 21.9~3.4 | 16.4~2.6 | |
| 10X | Total magnification | 7~45 | 3.5~22.5 | 4.9~31.5 | 10.5~67.5 | 14~90 |
| Diameter of visual field | 32.8~5.1 | 65.7~10.2 | 46.9~7.3 | 21.9~3.4 | 16.4~2.6 | |
| 15X | Total magnification | 10.5~67.5 | 5.3~33.8 | 7.4~47.2 | 15.8~101.3 | 21~135 |
| Diameter of visual field | 24.3~3.8 | 48.6~7.6 | 34.7~5.4 | 16.2~2.5 | 12.1~1.9 | |
| 20X | Total magnification | 14~90 | 7~45 | 9.8~63 | 21~135 | 28~180 |
| Diameter of visual field | 20~3.1 | 40~6.2 | 28.6~4.4 | 13.3~2.1 | 10~1.6 | |
| 30X | Total magnification | 21~135 | 10.5~67.5 | 14.7~94.5 | 31.5~202.5 | 42~270 |
| Diameter of visual field | 12.9~2 | 25.7~4 | 18.4~2.9 | 8.6~1.6 | 6.4~1 | |
| Working distance | 118 | 195 | 145 | 50 | 35 | |
Optional attachments：
- Stands: SD1～SD20
- Universal stands: U1, U2, U3, U4, U1C, U 2C , U3C,U4C
- Eyepieces: 10X,15X, 20X, 30X; divisional eyepieces: 10X, 15X, 20X
- Plane achromatic none aberrance objectives: 0.5X , 1X, 2X
- Auxiliary illuminators: ML01, YKB-144T, XQK-150, etc
- Photo adapters and CCD adapters:PT01, DT01 , 0.5X CCD adapter: C0.5, 1X
- CCD adapter: C1.0
- 1X CCD adapter with micrometer: CDM1.0
