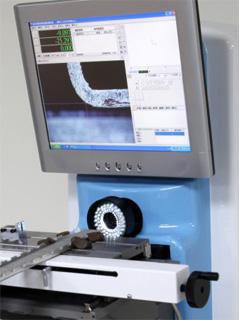

Horizontal Non-Contact Video Measuring Machine
Attribute:
HIM-2015/HIM-3015
ARCS Stage
Categories : MEASURING MACHINE , VIDEO MEASURING MACHINE , Video Measuring Machine ,
Horizontal Non-Contact Video Measuring Machine
Brand : ARCS Model : HIM-2015 and HIM-3015
Technology Features:
- High resolution & high Accuracy CCD - Japan Made
- Magnification: 0.3x~ 1.8x (10x~60x) Step lens
Optional: 0.7~4.5 (17.5~112.5x) step lens - Illumination: Adjustable surface and contour Illumination
- Linear scale:0.5μm on X.Y-axis
- Length Accuracy: ± (3+L/75) μm
- Repeatability: 3μm on X.Y-axis
- Connection: RS-232 Output + Metrology software
- Power Supply: 1~,AC110~230V, 50/60Hz
- Monitor: 17 inch touch panel
- Screw Friction made in Germany
Software
- Software: SI-101
| Model No. | HIM-2015 | HIM-3015 |
| Travel Size (X.Y) | 200×130 | 300x130 |
| Focus Distance (mm) | 130 | 130 |
| Stage Size (mm) | 340×130 | 440x130 |
| Stage Load Capacity | 25 kg | 25 kg |
| Dimension (mm) | 935x680x970 | 995x880x970 |
| Net Weight | 143 kg | 159 kg |
Horizontal Non-Contact Video Measuring Machine
Brand : ARCS Model : HIM-2015 and HIM-3015
เหมาะสำหรับอุตสาหกรรมประเภท
Horizontal Non-Contact Video Measuring Machine
Brand : ARCS Model : HIM-2015 and HIM-3015
Image Measuring Software
The SI software has the user-friendly operation interface for multi-purpose measuring tools. This diverse and convenient gathering tool can conform to many current ways of measuring work pieces in complex industries, which gives the user a fast, accurate, and complete measurement.
SI-101 Multi-function image measuring software
Measuring Functions:
Framing Toolbar: CAD Drawing Toolbar:
Dimension Remark and CAD elementary drawing
Dimension Remark
The measuring tolerance setting function can facilitate the data judgement
Program Guidance:
The user only needs to follow the guidance to finish the measurement. It doesn’t need the special operator.
3-Dimensional Diagram:
The user could depend on the measuring graphic to select the Top View, Front View,
Side View or ISO View.
Easy and Fast measurement function:
The function of Move/Rotation/ Array/Mirror could help the user to measure the complicated
or Multi-entities working piece in short time.
Scan Function:
Post-Process for scan image of points
It could scan the shape of the working piece and correspond to current CAD Reverse Engineering.
Dimension Remark on the image
It could remark the dimension on the image for the complete working piece and save in JPG format.
Customize inspection Report
SPC Report
