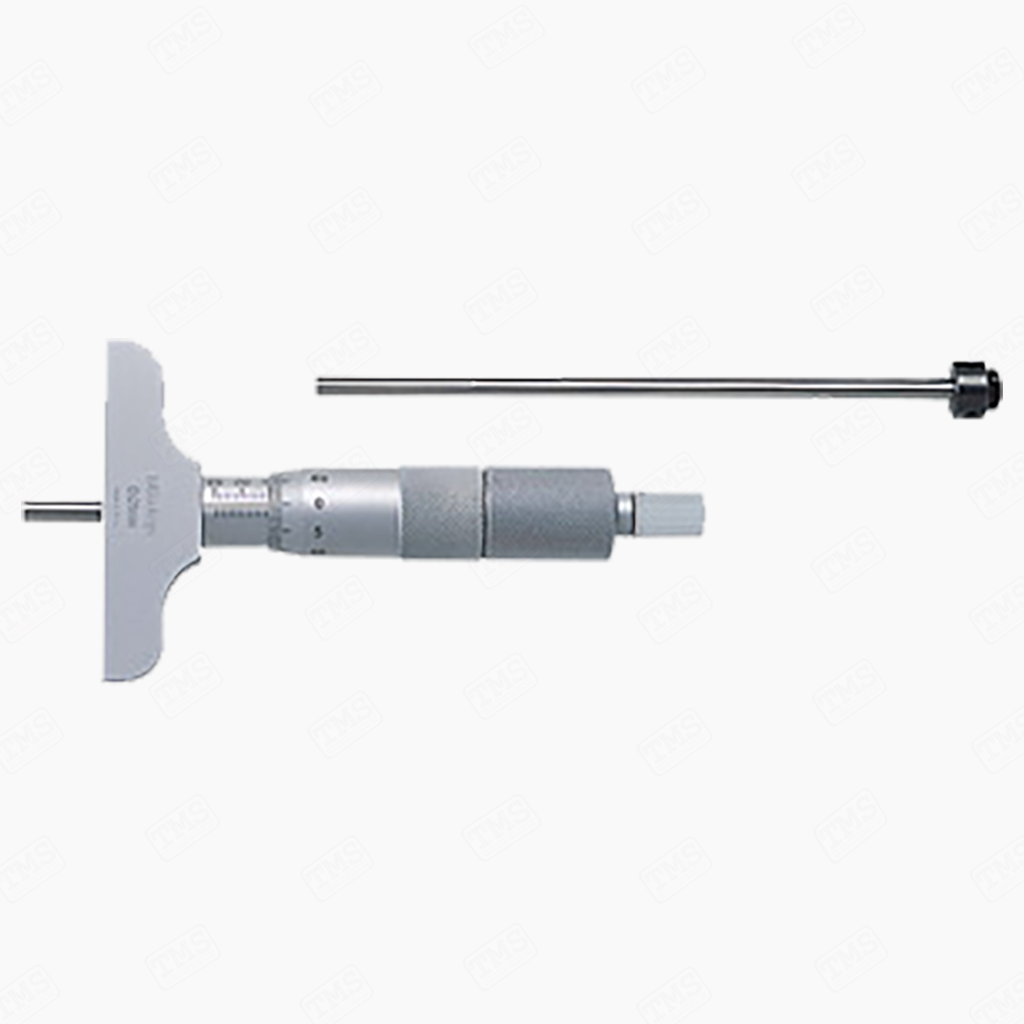

Depth Micrometer Series 129 - Interchangeable Rod Type
Attribute:
Depth Micrometer Series 129 - Interchangeable Rod Type
Choose
Categories : Small Tools , Depth Gages ,
Depth Micrometer Series 129 - Interchangeable Rod Type
FEATURES
• ø4mm interchangeable rods, with lapped measuring end, provide a wide measuring range.
• The rod length can be adjusted in 1” or 25mm increments.
• With ratchet stop for constant force.
• With measuring rod clamp.
• Supplied in fitted plastic case.
Metric
| Order No. | Range | Graduation | Base | No. of rods |
| Analog | ||||
| 129-154 | 0 - 25mm | 0.01mm | 63.5 x 16mm | 1 |
| 129-155 | 101.6 x 16mm | |||
| 129-109 | 0 - 50mm | 63.5 x 16mm | 2 | |
| 129-113 | 101.6 x 16mm | |||
| 129-110 | 0 - 75mm | 63.5 x 16mm | 3 | |
| 129-114 | 101.6 x 16mm | |||
| 129-111 | 0 - 100mm | 63.5 x 16mm | 4 | |
| 129-115 | 101.6 x 16mm | |||
| 129-112 | 0 - 150mm | 63.5 x 16mm | 6 | |
| 129-116 | 101.6 x 16mm | |||
| 129-152 | 0 - 300mm | 63.5 x 16mm | 12 | |
| 129-153 | 101.6 x 16mm | |||
Inch
| Order No. | Range | Graduation | Base | No. of rods |
| Analog | ||||
| 129-127 | 0-4in | .0005"/ 0.01mm | 2.5x63in | 4 |
| 129-128 | 0-6in | 2.5x63in | 6 | |
| 129-131 | 0-4in | 4x63in | 4 | |
| 129-132 | 0-6in | 4x63in | 6 | |
| 129-149 | 0-12in | 2.5x63in | 12 | |
| 129-150 | 0-12in | 4x63in | 12 | |
DIMENSIONS
