SHB-3000B ARC VISION
คุณสมบัติสินค้า:
BRINELL HARDNESS TESTER
หมวดหมู่ : เครื่องวัดความแข็ง , Brinell ,
BRINELL HARDNESS TESTER
SHB-3000B

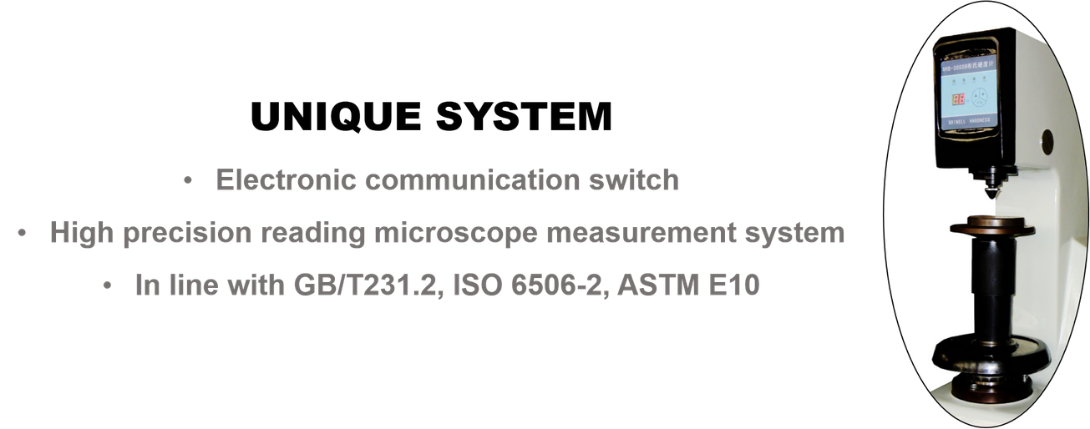

- Electronic communication switch.

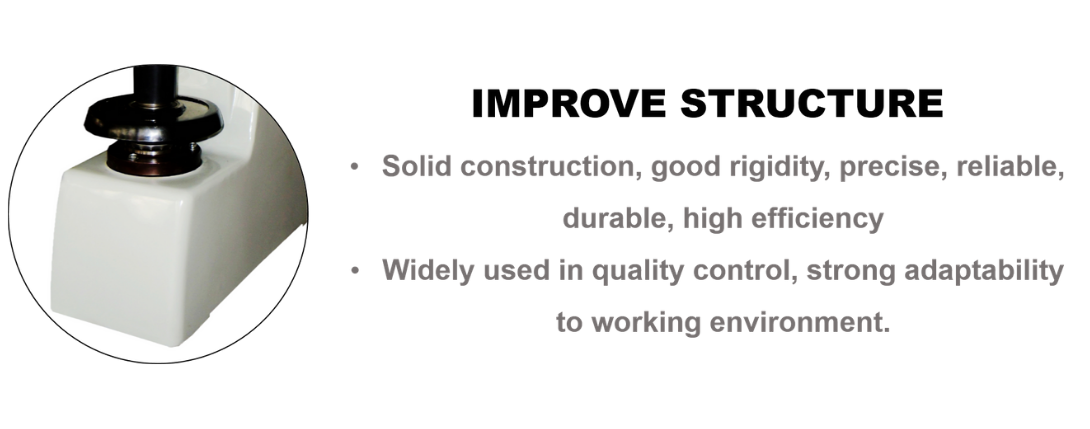

- Solid construction, good rigidity, precise, reliable, durable, high efficiency.
- High precision reading microscope measurement system.
- Widely used in quality control, strong adaptability to working environmen.
- In line with GB/T231.2, ISO 6506-2 ,ASTM E10
| Product Name | Brinell Hardness Tester | ||
| Model | SHB-3000B | ||
| Code | 831-101 | ||
| Test Force | kgf | 187.5Kgf, 250Kgf, 750Kgf, 1000Kgf, 3000Kgf | |
| N | 1839N, 2452N, 7355N, 9800N, 29400N | ||
| Measuring Range | (8-450) HBS，(8-650) HBW | ||
| Hardness Display | Check the table of Brinell Hardness scale | ||
| Microscope | Analogue 20x Microscope | ||
| Maximum Height of Specimen | 230mm | ||
| Instrument Throat | 120mm | ||
| Dimension | 700 x 268 x 842mm | ||
| Gross/Net Weight | 240Kg/210Kg | ||
| Execution Standard | GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243 | ||
| Accuracy of Brinell hardness testing | |||
| Hardness Range | Max Tolerance | Repetition | |
| HBW ≤ 125 | ≤ ±3.5％ | ≤ 3.5％ | |
| 125 ＜ HBW ≤ 225 | ≤ ±2.5％ | ≤ 3.0％ | |
| HBW ＞ 225 | ≤ ±2.0％ | ≤ 2.5％ | |
| Product Name | Code |
| Instrument Main Body | 831-101 |
| Analogue 20x Microscope | 831-231 |
| Hardness Block HBW10/3000 | 831-601 |
| Hardness Block HBW5/750 | 831-611 |
| Ø10mm Ball Indenter | 831-411 |
| Ø5mm Ball Indenter | 831-421 |
| Ø2.5mm Ball Indenter | 831-431 |
| Ø200mm Flat anvil | 831-551 |
| Ø60mm Flat anvil | 831-501 |
| Ø40mm V-shape Anvil | 831-521 |
| Power Cable | 831-801 |
| Accessories Box | 831-901 |
| Anti-dust Cover | 831-911 |
| Qualified Certificate | SHB-3000B |
| Operation Manual | SHB-3000B |
