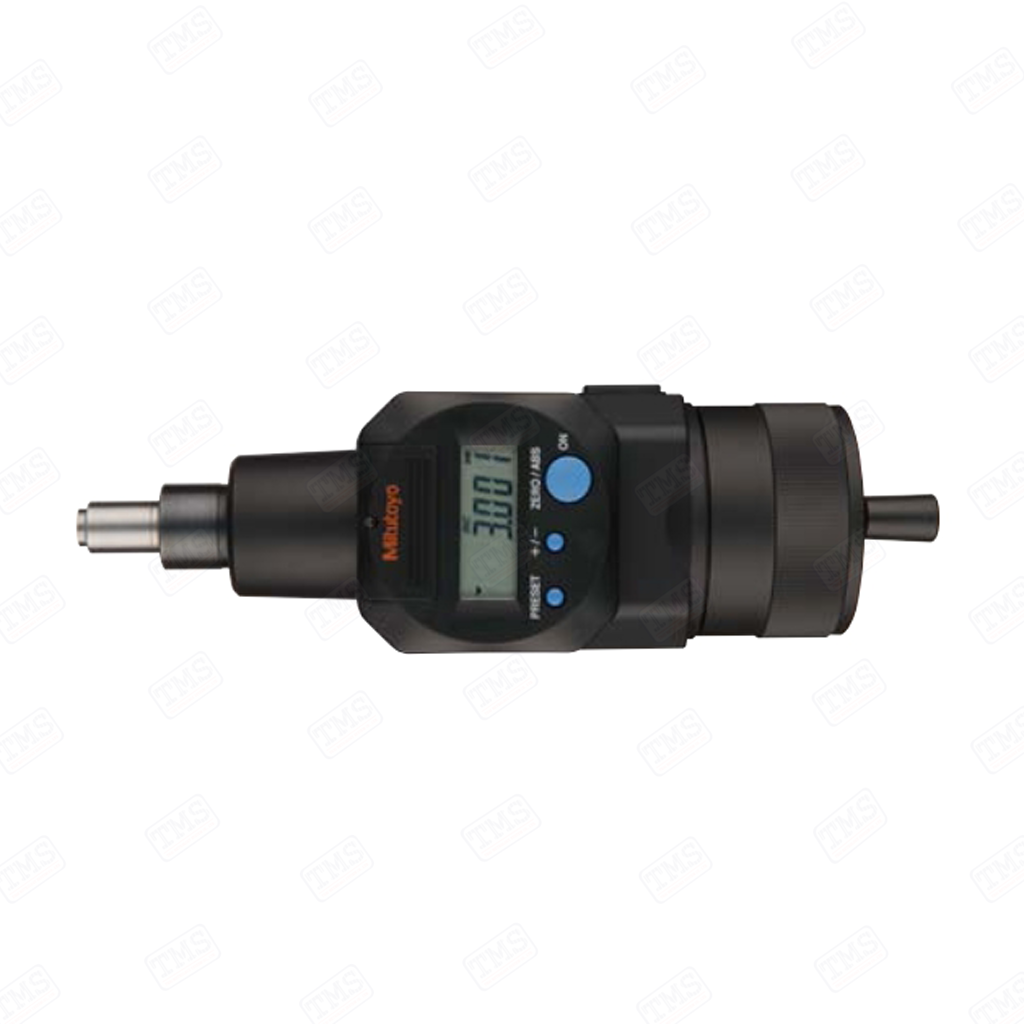

Digimatic Micrometer Heads SERIES 164/350

หัวไมโครมิเตอร์ | Digimatic Micrometer Heads SERIES 164/350

 Metric

* IP65 dust/water protection type ** Excluding quantizing error

  Inch / Metric

 * IP65 dust/water protection type * Note: Stem diameter of IP65 type is 12mm. ** Excluding quantizing error

IP Codes (series 350)
Level 6: Dustproof
              No ingress of dust allowed.
Level 5: Protected against water jets.
              Water projected in jets against the enclosure
              from any direction shall have no harmful effects.
Battery for series 350
SR44(1 pc), 938882 for initial operation checks (standard accessory)
Battery for series 164
SR44(2 pcs.), 938882 for initial operation checks (standard accessory)
Battery life: Approx. 2.4 years under normal use
                    (for series 350-XXX)
                    Approx. 1.8 years under normal use
                    (for series 164-163, 164)
Length standard: Electromagnetic rotary sensor
Standard accessories: Reference bar, 1 pc
Spanner (301336), 1 pc (for series 350-XXX)
Screwdriver (No.05CAA952), 1pc (for series 164-163, 164)

Functions (series 164/350)
Origin point setting (ABS measurement system):
Resets the ABS origin at the current spindle position to
the minimum value of the measuring range and switches
to ABS mode.

• Zero-setting (INC measurement system):
  A brief press on the ZERO/ABS button sets display to
  zero at the current spindle position and switches to the
  incremental (INC) measuring mode. A longer press resets
  to the ABS measuring mode.
• Data output:
  Equipped with output port for transferring measurement
  data to a Statistical Process Control (SPC) and
  measurement system.
• Auto power ON/OFF:
  The reading on the LCD disappears after this instrument
  is idle for about 20 minutes, but the reading and
  measurement mode are retained. Turning the spindle
  causes the reading on the LCD to reappear.
• Error alarm:
  In case of an overflow on the LCD or a computing error,
  an error message appears on the LCD and the measuring
  function stops. This prevents an instrument from giving
  an erroneous reading. Also, when the battery voltage
  drops to a certain level, the low-battery-voltage alarm
  annunciator appears well before the micrometer becomes
  unusable.
