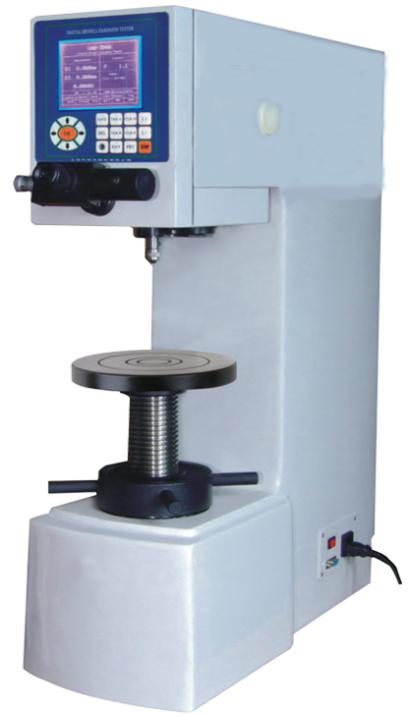

ARC SV Series Digital Vickers Hardness Tester
คุณสมบัติสินค้า:
ARC SV Series Digital Vickers Hardness
หมวดหมู่ : Vicker , เครื่องวัดความแข็ง , Brinell ,
แบรนด์ : arc vision
ARC SV Series Digital Vickers Hardness Tester
- Application
◆ Hardness testing of metals and scientific researching;
◆ Hardness range from soft materials to very hard materials;
◆ Except very thin and coated layers, can test almost the metals.
- Characteristics
◆ Apply closed loop loading sensor, MPU controls the loading, dwell and unloading process;
◆ Equips with LCD screen, show loading force, hardness value, dwell time;
◆ Just aim the dialog line, then it will automatically reading the length and display hardness value
◆ Available to add optional mini printer, motorized turret, and VicPad measurement device or PC software iVicky 2.0.
Specification :
| Product Name | Digital Vickers hardness tester | ||||
| Model | SV-5 | SV-10 | SV-30 | SV-50 | |
| Code# | 821-101S | 821-111S | 821-121S | 821-131S | |
| Loading Force (N ) | 2.94, 4.9,9.8, 19.6,24.5,29.4, 49.0 | 2.94,4.9,9.8, 19.6,24.5,29.4, 49.0,98.0 | 4.9,9.8,19.6, 24.5,29.4,49.0, 98.0,196,294 | 9.8,19.6,24.5, 29.4,49.0,98.0, 196,294,490 | |
| Loading Force (kgf ) | 0.3,0.5,1, 2,2.5,3,5 | 0.3,0.5,1, 2,2.5,3, 5,10 | 0.5,1,2, 2.5,3,5, 10,20,30 | 1,2,2.5, 3,5,10, 20,30,50 | |
| Optic System | Observe and Measure Objectives：10X/20X | Observe and Measure Objectives：10X/40X | Observe and Measure Objectives：10X/20X | Observe and Measure Objectives：10X/20X | |
| Hardness Range | 1HV-2967HV | ||||
| Turret | Manual Turret（Optional Motorized Turret） | ||||
| Loading Control | Auto loading dwell and unloading | ||||
| Eyepiece | 10x digital Eyepiece | ||||
| Dwell Time | 5-60s adjustable | ||||
| Illumination | 90mm | ||||
| Instrument Throat | LED / halogen | ||||
| Vertical Space | 170mm | ||||
| Horizontal Space | 130mm | ||||
| Power Supply | AC220V/50Hz; AC110V/60Hz | ||||
| Tester Dimension | 530x225x630mm | ||||
| Packing Dimension | 630x460x710mm | ||||
| Gross / Net Weight | 75Kg/55Kg | ||||
| Conform Standards | ISO6507，ASTM E92，JIS Z2244，GB/T4340 | ||||
